型号：3 in 1 FMMB-2000
规格：3 in 1 FMMB-2000
市场价：0.00
优惠价：0.00
Specifications
Monoblock 3 in 1 water
filling machine / equipment 1.capacity:1000bph~20000bph or made to order
2.bottle:pet or glass
3.easy

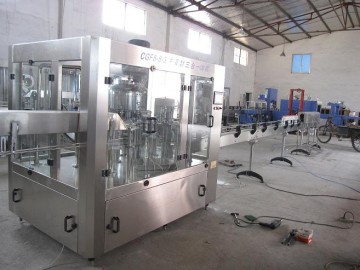

Monoblock 3 in 1 water filling machine / equipment
1. The FMMF corbonated drink filling monblock is used to fill corbonated drinks into ployster or glass bottles.
2.Washing ,filling ,sealing can be carried out on the same machine.
3.The whole machine is controllde by PLC with touch-screen as the interface betwween hunman and machine.
Technicial parameter:
|
Model: |
FMMF8-8-3 |
FMMF12-12-5 |
FMMF18-18-6 |
FMMF24-24-8 |
FMMF32-32-12 |
FMMF40-40-12 |
|
Capacity :500ml |
1000~2500 |
3000~4500 |
5000~7500 |
8000~12000 |
12000~15000 |
16000~20000 |
|
Filling type |
Balance pressure filler |
Balance pressure filler |
Balance pressure filler |
Balance pressure filler |
Balance pressure filler |
Balance pressure filler |
|
Filling temperature:( °C) |
0-4/10-85 |
0-4/10-85 |
0-4/10-85 |
0-4/10-85 |
0-4/10-85 |
0-4/10-85 |
|
Overall size:(mm) |
1950*1800*2350 |
2250*1800*2350 |
2450*1800*2350 |
2780*2200*2350 |
3600*2650*2350 |
3800*2950*2400 |
|
Weight: (kg) |
2300 |
2800 |
3500 |
4500 |
5500 |
6500 |
