型号：FMPM-1000
规格：FMPM-1000
市场价：0.00
优惠价：0.00
Specifications

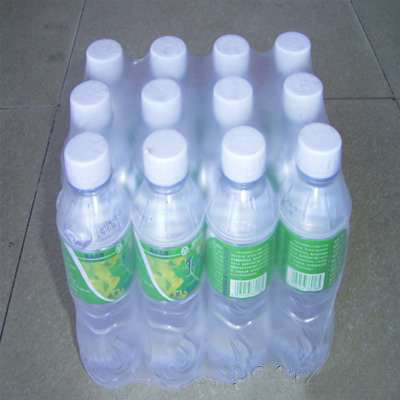

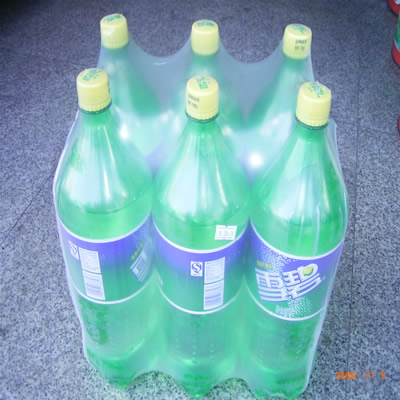

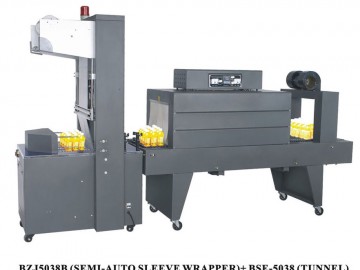

BZJ5038B semi-auto sleeve wrapper is suitable for wrapping pop-cans, bottles, etc, with bottom-tray or without bottom-tray
BZJ5038B semi-auto sleeve wrapper is suitable for wrapping pop-cans, bottles, etc, with bottom-tray or without bottom-tray, working with BSE-5038 jet PE-film shrink tunnel or other PE shrink tunnel BSE-5038. Enlarge packing range or custom-made machine according to customer’s requirement.
Characteristic:
² Upper and down electromagnetic switch prevent sealing mistakes, and protect operator.
² Every simply and easy to adjust machine to match different packing size.
² Simple operation and maintenance with high packing efficiency.
² ‘Schneider’ AC contractor, and Intelligent temperature controller performs stable.
² Automatic alarm security system protects machine and operator.
² Large power conveyer motor, with stepless speed regulating, ensures smooth feeding.
² Two large power fans make the temperature of shrink tunnel every even and stable, this ensures the excellent effect of shrinking in one time.
² Super cooling system cools the packing and makes the figuration perfectly.
Specification:
|
Model |
BZJ-5038B(Pneumatic) |
Model |
BSE-5038 |
|
Power supply |
220-240V, 50-60Hz;1.8KW |
Power supply |
3phase 220V/380V 50-60HZ |
|
Capacity |
0-6 packs/min |
Heater power |
20KW |
|
Sealing time/shrink time |
0.5-1.5s, 0-0.6s |
Conveyer speed |
0-10m/minute |
|
Conveyor loading |
30kg |
Tunnel size(L*W*H) |
1500*500*400mm |
|
Film thickness |
0.03-0.12mm |
Conveyer loading |
50KGS Max. |
|
Max. packing dimension(L*W*H) |
450 x 270 x 350mm |
Machine size |
2500*820*1680mm |
|
Min. packing dimension(L*W*H) |
250 x 60 x 60mm |
Machine weight |
470KGS |
|
Machine size(L*W*H) |
1020 x 830 x 1980mm |
Shrink film |
PE,POF,PVC,PP |
