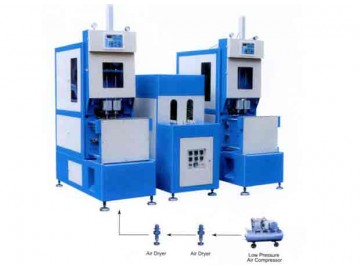

Double Blower
Blow Molding Machine(50ML-2000ML):
For PET bottle
Output Capaci: 1600-2000pcs/
Specification:
semi-automatic bottle blow molding machine is suitable for producing PET
plastic containers and bottles from 50-2000ml. It is widely used to produce the
carbonated bottle, mineral water pesticide bottle oil bottle cosmetics,
wide-mouth bottle and hot fill bottle etc.
Adopting double crank to adjust mould ,heavy locking mould, stable and fast
,Adopt infrared oven to heat the preform,the perform rotated and heated
equally.
The air system has been divided into two parts: pneumatic action part and
bottle blow part to meet the different requirements for the action and blow .It
can provide sufficient and steady high pressure for blowing large irregular
shaped bottles.
The machine is also equipped with muffler and oiling system to lubricate the
mechanical part of the machine.
The machine can be operated in the step-by-step mode and the semi-auto mode.
The machine is small with low investment,easy and safe to operate
|
Main parameter: |
||
|
Model |
FM-2P-C |
|
|
Main machine
|
Product material |
PET/PC |
|
Volume |
10ML-2000ML |
|
|
Theoretical output |
1600-1900PCS/H |
|
|
Preform length |
15mm-260mm |
|
|
Preform inner diameter |
Φ15mm-100mm |
|
|
Max. mould plate Dimension(L x W) |
400x450mm |
|
|
Max.mould thickness |
370mm |
|
|
Clamping force |
100KN |
|
|
Mould opening stroke |
350mm |
|
|
Blowing Air Pressure |
<=3.0 Mpa |
|
|
Working Pressure |
<=1.0mpa |
|
|
size and weight |
Main machine (L x W x H) |
160×62×165cm×2 |
|
Main machine weight |
550Kg×2 |
|
|
Heater (L x W x H) |
187×63×145cm |
|
|
Heater weight |
250Kg |
|
|
Power |
14 kw |
|
