型号：SJIII-F seriese
规格：30-60bags/minute
市场价：0.00
优惠价：0.00
Technical performance:

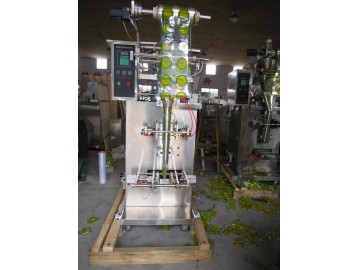

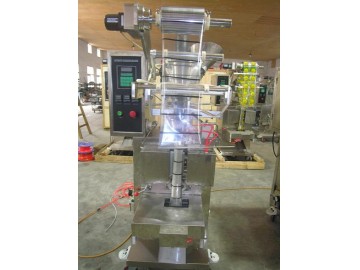

SJIII-F
Series Automatic powder packaging machine adopts microcomputer control
the bag length encoder, with photoelectric open light, the use of screw
cutting, controlled by PLC, configure high-precision digital temperature
controller, automatic bag making, measuring, filling, sealing, printing
and cutting functions, for food, medicine, chemical industry powder.
Technical parameters
|
Model |
SJIII-F 100 |
SJIII-F300 |
SJIII-F500 |
|
Bags made of length mm |
50-150 |
50-300 |
100-550 |
|
Bags made of width mm |
25-120 |
70-190 |
120-290 |
|
Packing film width mm |
60-240 |
160-380 |
260-600 |
|
Packaging Capacity ml |
5-100 |
50-500 |
1000-3000 |
|
Packing speed bags / min |
30-60 |
30-60 |
20-60 |
|
Power kw |
1.8 |
2.15 |
4 |
|
Gas source mpa |
0.6 |
0.65 |
0.65 |
|
Air consumption L / min |
100 |
100 |
500 |
|
Dimensions (mm) |
760 × 980 × 1 7 00
|
900 * 1110 * 2100 |
1180 * 1890 * 2750 |
|
Weight (kg) |
310 |
500 |
850 |
