CIP System

Description:
CIP system functions on all product contact surfaces for automatic cleaning, cleaning objects, including the tank wall, pipe wall, liquid cylinders and other fluid channel wall.

CIP systems are usually the cleaning liquid storage tank, acid-base add the devices, heaters, process pumps and return pumps, and piping, steam valve and other components.
CIP system is a key process parameters for the cleaning fluid type, concentration, temperature and flow rate. Lye usually NaOH, nitric acid or phosphoric acid used, the concentration of 1-3%, adequate heating, cleaning flow rate in the 1.5-3m / s between.
Cleaning fluid tank usually has three: acid tank, lye cans, hot water tank.  By cleaning the object is different, can be divided into single-loop, double loop, multi-loop and so on.
Automatic CIP system, the measurement of concentrated acid added concentrated alkali, cleaning solution temperature is automatically controlled cleaning

equipment recipients to force the cleansing liquid to circulate to make cleaning
without taking apart pipes or equipment. With the system the equipment availability
can be improved and intensity of labor lessened.

CIP is specially designed for the clean up of beverage production line and filling equipment,with three cleaning sections.

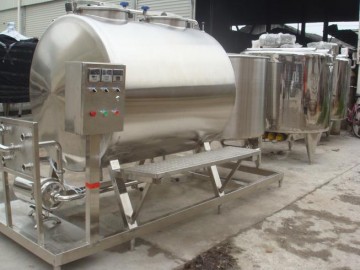

CIP/Clean In Place Machine/Cip Rinsing Machine/Clean-In-Place

CIP is specially designed for the clean up of beverage production line and filling equipment, with three cleaning sections of acid, alkali and hot water, in which temperature can be set up for acid, alkali and hot water.

A new generation of touch screen operation, which is both open-and-shut and easy to handle. CIP EQUIPENT
PLATE ECHANGE HEATER
1.Liquid store TANK
2.Acidity, alkalescent
3.Liquid PH &118alue
4.Mensuration machine
5.Acidity Liquid, alkalescent
6.Liquid Dose pump
7.CIP infeed PUMP
8.CIP Liquid reclaim pump
9.CIP infeed &reclaim piprline
10.Automatic pneumatic valve
