型号：FMT-UHT -2
规格：1-10Ton/hr
市场价：0.00
优惠价：0.00
UHT pasturizer euipment
Good pasteurizer effect
Fully automatic simens PLC control
small energy consumption

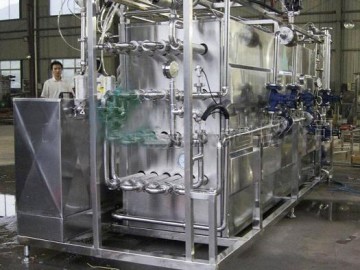

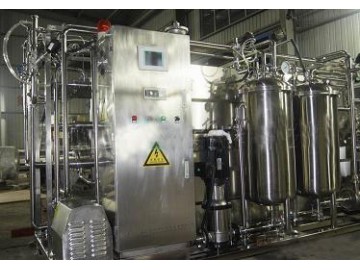

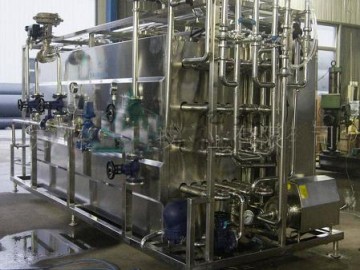

Tubular UHT sterilizer,It is suitable for all kinds of aseptic filling packaging like brick tetra pak, paper package, glass bottle...
The tube(pipe) sterilize machine can take hot process on the liquid foods and
beverage.Compared to the sterilizer of other model,it has the following characteristics:
1.High heat effect,90% of the heat can be recycled after heating the material
2.Temperature ap between the medium and the material is small,so to realize gentally heating,the heating pipe adopts wave pipe,the material and the medium are both in flow
3.It is of high automatic degree,can automatically control and record from CIP cleaning to pipe sterilizing to sterilizing the material.
4.It is of precise and reliable sterilizing temperature control,automatically control the affecting sterilizing temperature system such as steam pressure,flow and material flow.
5.The inside of the material pipe adopts advanced polish technology,pipe joints automatically,pipe design realize complete automatically clean,and the whole process
Sterilizes,so to ensure the system aseptic.
6.It is of strong system safety,the fittings all adopts reliable product with good capacity,the design values the human,safe equipment,and the steam,hot water and the material all
Adopts pressure protection methods and alarm system.
The tubular UHT is widely used in the processing of milk, juice, tea drink, dairy drink, tomato paste, flavoring, beer, cream, ice cream, egg products, solid powder product etc.
It is composed of material system, high temperature hot water system, degassing system (selective), high pressure homogenizing system (selective), CIP cleaning system, self-sterilizing aseptic system (selective) and controlling system.
The core part of this set of equipment is Tubular UHT Sterilizer. The whole system is in compact structure, good sterilizing effect, brief operation, wide using range, low price etc. We can supply the UHT sterilizing system alone including the Sterilizer, the preheating tank, heat preservation tank etc. The system has the function of homogenizer connector, preventing forming galalith and pasteurization. We can also supply the whole system including the UHT sterilizing system and the quick-degassing system.
-------------------------------------------------------------------------------------------------------------------------------------------------------------------------
Parameters:
Model
Operational Capacity
(t/h)
Steam Consumption
(kg/h)
Steam Pressure
(bar)
Electric Power
(kw)
Outside Size
(L*W*H)
Weight
(kg)
Caliber(Φ)
Material
Steam
Medium
FMT-UHT -1
1
40
6.0
4.0
3.3*1.6*1.8
1960
25
DN25
25
FMT-UHT -1.5
1.5
60
6.0
4.0
3.3*1.6*1.8
1960
25
DN25
25
FMT-UHT -2
2
80
6.0
6.0
3.5*1.8*2.0
2160
38
DN25
38
FMT-UHT -3
3
120
6.0
6.0
4.5*1.8*2.0
2420
38
DN25
38
FMT-UHT -4
4
160
6.0
7.0
4.5*2.0*2.0
2570
38
DN32
38
FMT-UHT -5
5
200
6.0
7.0
4.5*2.0*2.0
2940
38
DN32
38
FMT-UHT -6
6
240
6.0
7.0
4.5*2.0*2.2
3300
51
DN40
51
FMT-UHT -8
8
320
6.0
11.0
6.5*2.0*2.2
3700
51
DN50
51
FMT-UHT -10
10
400
6.0
11.0
6.5*2.0*2.2
4200
51
DN50
51
Remark
1,The parameter in the chart is the reference only. If customer has special requirements, please point out.
2,The model choose standard of the tubular type UHT is the property of the material, the sterilizing technics, special requirements etc.
3,Auxiliary equipment: Air storage tank, air compressor, water storage tank and steam boiler (Customer supply)
