型号：FM-MVD-1/15
规格：SS304
市场价：0.00
优惠价：0.00
1. high efficiency

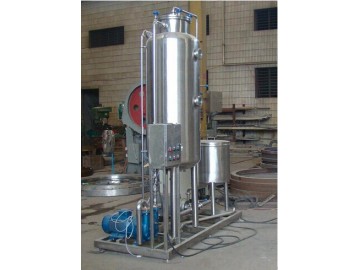

The vacuum degassing tankis used for homogenized fruit juice,milk to degas in vacuum condition, in order to prevent the oxidation, and extend the shelf life of fruit juice. The vacuum degassing unit includes vacuum degassing machine, vacuum pump and centrifugal pump. It uses vacuum suction action to remove air (oxygen) in material, resist oxidation, and improve the quality of the products. At the same time, to remove hang scattered particle gas, prevent the particle rise, effectively improve the appearance of the products, still can reduce foam produced by filling and high temperature sterilization, improve the appearance of the products, but also can reduce the container's inner surface corrosion.
Directory
Specifications
2. reliable quality
3. easy operation
4. reasonable design
Characteristics of Vacuum Degassing Tank
1. can greatly shorten the degassing time of heating or cooling system exhausting water, was very beneficial for operation system to the first test .
2. remove gas in system, prevent air resistance to ensure that the system stable and reliable operation.
3. eliminate water pump cavitations’ erosion, reduce the system noise .
4. the removal of oxygen in water reduces the aerobic corrosion of the equipment, prolong the using time.
5. due to removal of gas in the water, the surface of heat exchanger will not covering gas bubble, improve the heating efficiency.
6. the working time and cycle can be adjust according to need.
7. single applicable system volume can be reach up to 150 m3, and can be parallel used.
8. equipment installation convenient, automatic operation, safe and reliable, easy to maintenance.
Technical Parameters of Vacuum Degassing Tank
Model
FM-MVD-1
FM-MVD-2
FM-MVD-3
FM-MVD-10
FM-MVD-15
Processing power
1000L/H
2000L/H
3000L/H
10000L/H
15000L/H
Vacuum degree
6.4~8.7×10pa
Motor power
3.95kw
4.5kw
4.5kw
8kw
9.5kw
Body size
1035×750×2840
1135×780×3040
1185×800×3140
1600×1700×3250
1750×1500×3500
Weight
270kg
350kg
450kg
600kg
800kg
Notes
1. the parameters in the chart for reference (in kind prevail), any special requirement, please put forward.
2. process parameters that need provided: capacity, special requirements, etc.
