Production use:

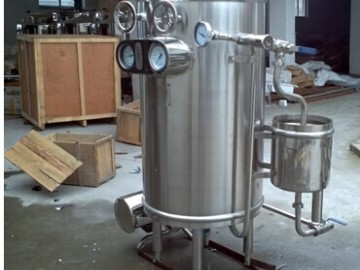

Ultra High Temperature Sterilization Machine is used for sterilizing timely with a high temperature which is widely used in soy sauce, vinegar , soy milk, juice, milk, and seasoning of concentrated juice and other beverage industry. It tends a new way to improve producing efficiency and enchance labor productivity.

Principle and mechnism:

Liquid material feed pump Into the double set of coil and get preheating, and then through high pressure barrels. Due to the bucket full of steam, tube liquid material was soon heating, the keep the three seconds, Liquid material contain bacteria was killed immediately. At this time the temperature of the liquid material from the thermometer display.Heat stock out after high temperature barrel by double set of coil and cold material for heat exchange cooling, And discharge temperature can be decreased significantly, the general condition is lower than 65 °C, such as some material next process need to supply high temperature, can open Angle type cut-off valve supplementary heating.

If you want to continue to cooling can access ice water (1-2 °C) discharge is through the throttle valve, the valve can make the material to maintain in a certain pressure, make its boiling point higher than the maximum heating temperature, the normal production will be the adjustment, the pump of the thrust overcome spring pressure produce "back pressure" control flow, in washing all open, cycle storage tank  can be used to compound chemical detergent for cycle washing plate wall surface scale.

When dealing with high viscosity material a diagram later can connect high pressure homogenizer. This equipment users should bring along their own squash, ability for 1.5 2 kl/h, pressure 14.7 MPa.

This equipment and material contact part, all adopt the stainless steel 1 cr18ni9ti manufacturing, double sleeve plate work special machine tool processing, concentricity high. Inner surface is bright and clean, so that the fluid material through the double set of coil when lead into a uniform fluid layer, heating is very uniform.

This equipment of feed and discharge all use tee cock, flow can according to need adjustment, the use of reliable.

Equipment characteristics:

1. the continuous production, and the sterilization time is very short.
2. with heating time short can get good quality products.
3. with the ultra high temperature sterilization, the sterilization effect is very high.
4. and centrifugal pump or high pressure homogenizer series use, application range have wide, suitable for high viscosity material sterilization.
5. with the design of a cold and hot material heat exchange instruments have waste heat utilization economic effect, so steam consumption small.

Steam UHT working principle

General materials by centrifugal pump pump into the sterilization machine cold and hot material heat exchange device and get preheating, repass is full of high pressure of high temperature bucket, and the material was rapidly heated to sterilization temperature before and after keep about 3 seconds, the microbes and enzymes was quickly kill.

Material out after high temperature bucket with cold material for heat exchange cooling, general temperature below 65 °C. If the next process needs to improve temperature can be through the control Angle type cut-off valve or circulation way such as meet the requirements, conversely through the access cooling water to reduce the discharge temperature.

Discharge through the throttle valve control, the valve can make in maintaining the boiling point of material under certain pressure is higher than the highest temperature. Regular production control the valve, the pump driving force to overcome spring pressure and produce back pressure control flow, in cleaning sterilization machine, shall all be open.

Cycle storage tank can be used to compound alkali solution, the coil pipe wall scale for effective cleaning.

Because at the same time adopt stainless steel tee cock, flow can get proper adjustment.

Technical parameters

After sales service:

1. 12 months quality guaranty, the machine with main parts(excluding the consumables) shall be changed free of charge if there is any problem during the warranty period.
2. Lifetime maintenance.
3. Free training course at our plant.
4. We will provide the consumable parts at an agency price when you need replacement.
5. 24 hours on line service every day, free technical support.
6. Machine has been adjusted before delivery.
7. Our engineers can be sent to your company to install or adjust.
